Hub Centric Center Cap for TC105X FORGED / TC105X
¥5,500/1pc
Click the images and drawings to enlarge
CODE：52890
CODE：52903
CODE：52904
CODE：52905
CODE：52906
CODE：52907
CODE：52908
CODE：52909
CODE：52973
CODE：53214
CODE：53215
| CODE | NAME | SIZE | COMPATIBLE CARS |
|---|---|---|---|

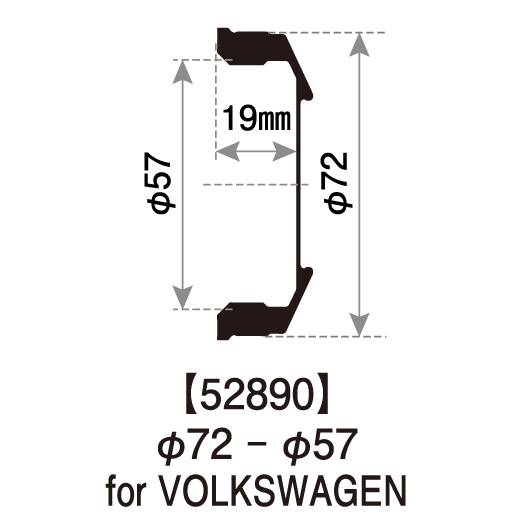

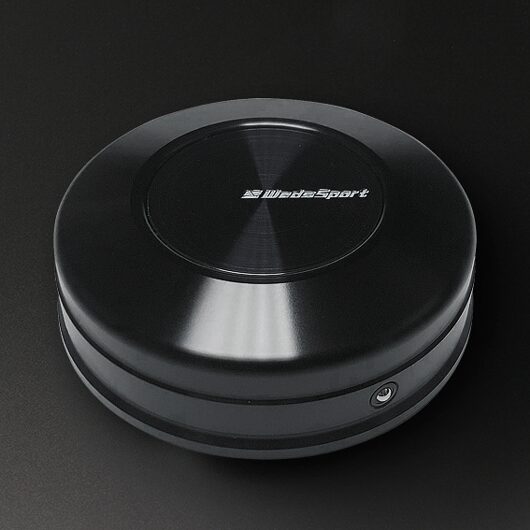

| 52890 | Hub Centric Center Cap TYPE-A |
φ73－57.1 | Mainly VOLKSWAGEN |
| 52891 | Hub Centric Center Cap TYPE-B |
φ73－57.1 | B-TYPE fits OEM VOLKSWAGEN caps 【Part No. 3B7 601 171（Outer diameter approx. 66mm）】 |
*B-TYPE fits OEM VOLKSWAGEN caps.【Part No. 3B7 601 171（Outer diameter approx. 66mm）】
OEM VOLKSWAGEN caps not included.
| CODE | NAME | SIZE | THE TYPE OF THE COMPETIBLE CAR |
|---|---|---|---|

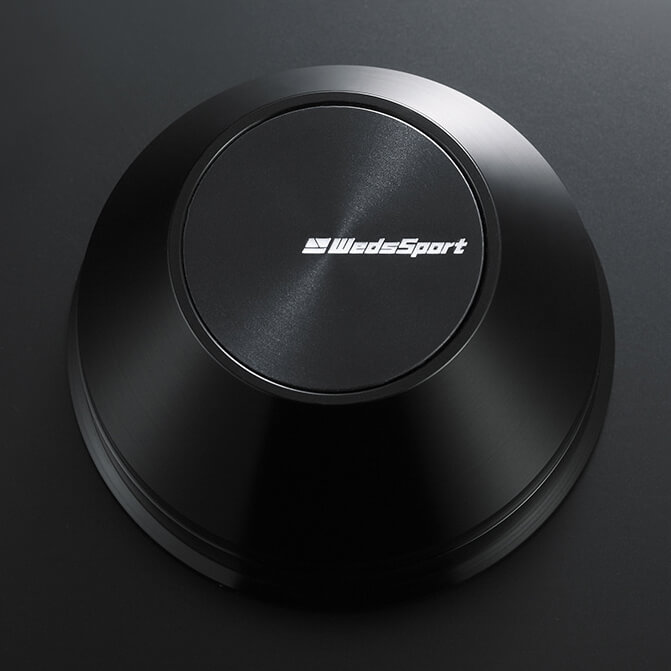

| 53214 | Hub Centric Center Cap TYPE-K |
φ73－66.5 | BMW, Mercedes-Benz |
| CODE | NAME | SIZE | THE TYPE OF THE COMPETIBLE CAR |
|---|---|---|---|
| 52903 | Hub Centric Center Cap TYPE-C |
φ65－54 | Mainly TOYOTA ※86=φ56, MAZDA, SUZUKI, DAIHATSU P.C.D.100 |
| 52904 | Hub Centric Center Cap TYPE-D |
φ65－56 | Mainly HONDA, MITSUBISHI, SUBARU P.C.D.100 |
| 52905 | Hub Centric Center Cap TYPE-E |
φ65－60 | Mainly NISSAN P.C.D.100 |
| 52906 | Hub Centric Center Cap TYPE-F |
φ73－60 | Mainly TOYOTA, SUZUKI P.C.D.114.3 |
| 52907 | Hub Centric Center Cap TYPE-G |
φ73－64 | Mainly HONDA P.C.D.114.3, 120 |
| 52908 | Hub Centric Center Cap TYPE-H |
φ73－66 | Mainly NISSAN P.C.D.114.3 |
| 52909 | Hub Centric Center Cap TYPE-I |
φ73－67 | Mainly MAZDA, MITSUBISHI P.C.D.114.3 |
| 52973 | Hub Centric Center Cap TYPE-J |
φ73－56 | Mainly SUBARU P.C.D.114.3 |

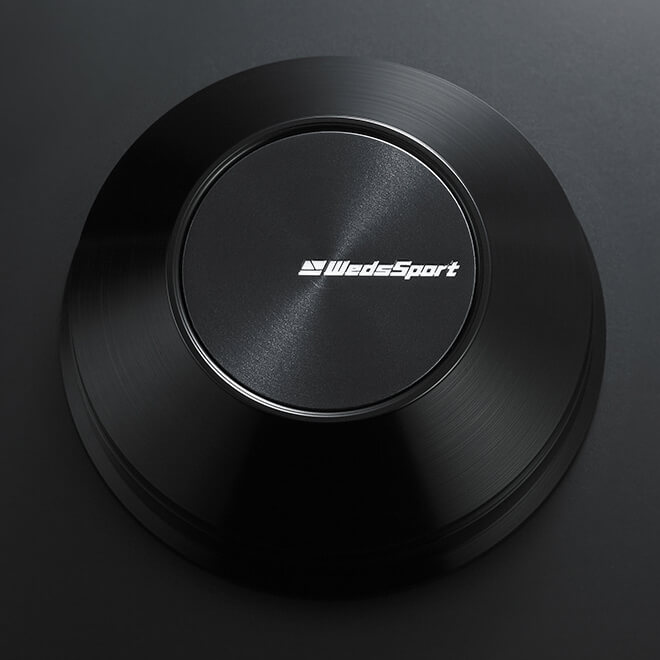

| 53215 | Hub Centric Center Cap TYPE-L |
φ73－70 | S2000（FRONT） |
*Please check your vehicle’s hub diameter before selecting.
*Installation may be difficult if there is rust on the vehicle hub or dirt on the wheel.
Before installing, use a brush or a similar tool to thoroughly clean the area.

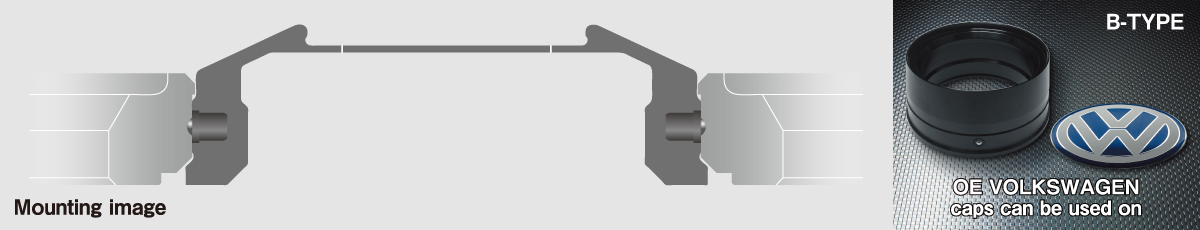

Note: The Hub Centric Center Cap can only be installed from the back of the wheel.
