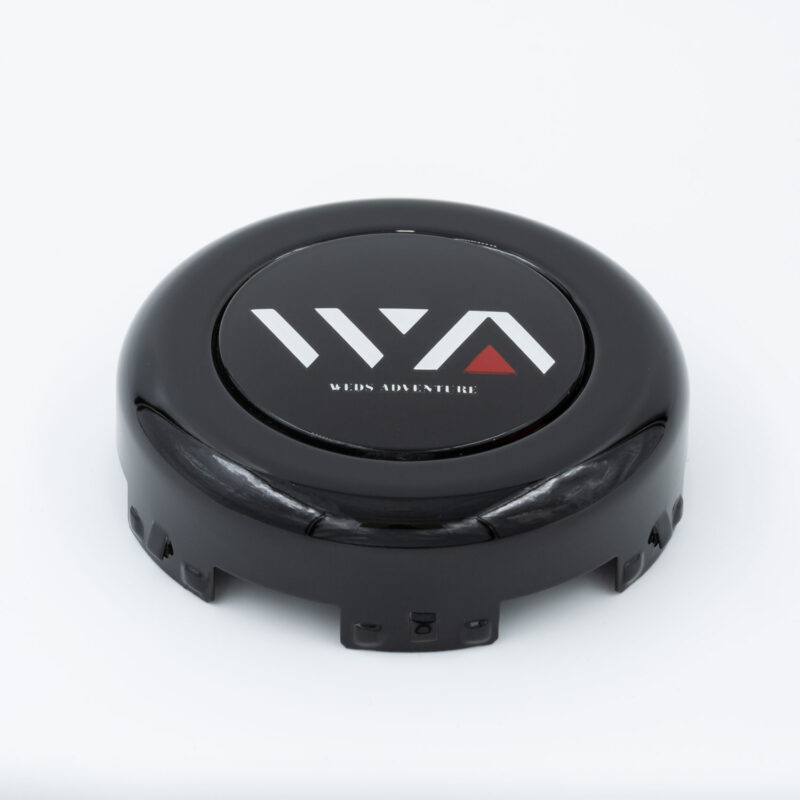

TYPE W/A WRV CAP

(Scheduled to go on sale in April 2022)

CP-WRV • Hi

For MUD VANCE / KEELER series 4WD wheels (139.7)
【Stainless】 [53067]
¥3,000
【Black】 [53068]
¥3,000

CP-WRV • Mid

For MUD VANCE / KEELER series 4WD wheels (139.7)
【Stainless】 [53069]
¥3,000
【Black】 [53070]
¥3,000

CP-WRV • Low

For MUD VANCE / KEELER series 4WD wheels (139.7)
【Stainless】 [53071]
¥3,000
【Black】 [53072]
¥3,000

TYPE EAGLE WRV CAP

This product is only available in stock. Please forgive us if we run out of stock.
Name Cap Price Full length Inner diameter Remarks
Code

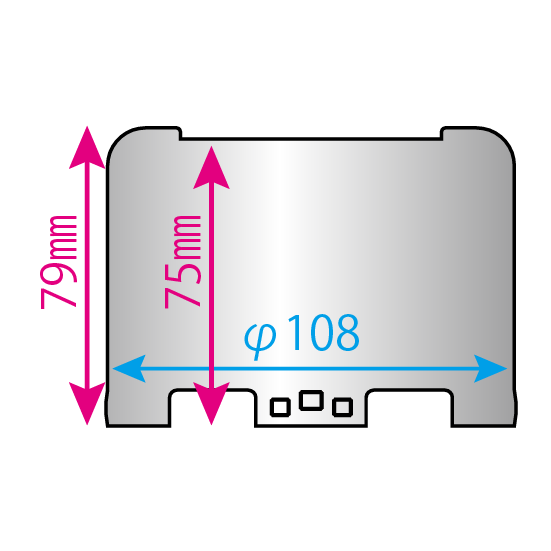

①CP-WRV・Hi
[52476]
Stainless JPY 2,500 79mm
(75mm)
φ107 For MUD VANCE, KEELER series 4WD wheels (139.7)

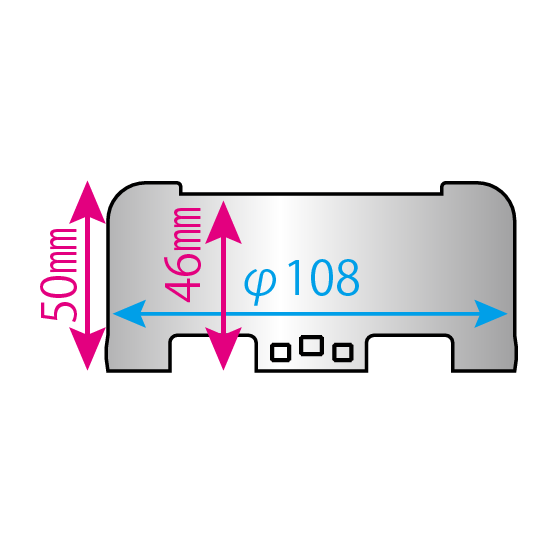

②CP-WRV・Mid
[52477]
Stainless JPY 2,500 50mm
(46mm)
φ107 For MUD VANCE, KEELER series 4WD wheels (139.7)

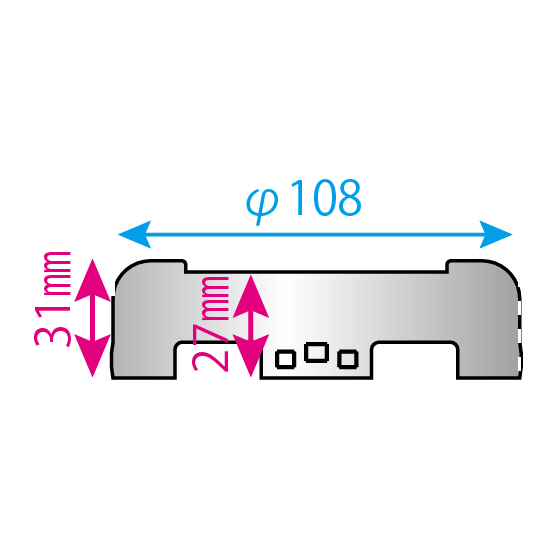

③CP-WRV・Low
[52478]
Stainless JPY 2,500 31mm
(27mm)
φ107 For MUD VANCE, KEELER series 4WD wheels (139.7)

④CP-WRV・Mid
[52495]
Matte Black JPY 2,500 50mm
(46mm)
φ107 For MUD VANCE, KEELER series 4WD wheels (139.7)

※Install center caps from inside of wheels.
■The price is for 1pc.

APPLICATION

Car name Model Front HUB
height
APPLICATION Rear HUB
height
APPLICATION
HIACE WAGON(~’96/8) 100/4WD 88 Hub height is large · Can not be installed 10 WRV-Low
HIACE WAGON(’96/8~) 100/4WD 70 WRV-Hi 22 WRV-Low
HIACE VAN(’96/8~) 100/2WD 53 WRV-Hi 11 WRV-Low
100/4WD 70 WRV-Hi 21 WRV-Low
HIACE 200/2WD 10 WRV-Low 13 WRV-Low
200/4WD 23 WRV-Low 13 WRV-Low
HIACE REGIUS 40/2WD 53 WRV-Hi 22 WRV-Low
40/4WD 69 WRV-Hi 22 WRV-Low
GRANVIA
GRAND HIACE
10/2WD 53 WRV-Hi 22 WRV-Low
10/4WD 69 WRV-Hi 22 WRV-Low
HILUX SURF 130系 67 WRV-Hi 11 WRV-Low
180/2WD 9 WRV-Low 11 WRV-Low
180/4WD 28 WRV-Mid 10 WRV-Low
210/4WD 32 WRV-Mid 10 WRV-Low
HILUX 120系 34 WRV-Mid 10 WRV-Low
HILUX PICKUP 160・170/4WD 70 WRV-Hi 12 WRV-Low
LAND CRUISER 80 VAN 77 Hub height is large · Can not be installed 75 WRV-Hi
90 PRADO 32 WRV-Mid 10 WRV-Low
120 PRADO 32 WRV-Mid 10 WRV-Low
150 PRADO 32 WRV-Mid 10 WRV-Low
FJ CRUISER GSJ15 32 WRV-Mid 10.5 WRV-Low
ELGRAND E50/2WD 38 WRV-Mid 5 WRV-Low
E50/4WD 66 WRV-Hi 8 WRV-Low
CARAVAN E24/2WD 48 WRV-Hi 6 WRV-Low
E24/4WD 61 WRV-Hi 6 WRV-Low
E25/2WD 5 WRV-Low 6 WRV-Low
E25/4WD 27 WRV-Low 6 WRV-Low
E26/2WD 5 WRV-Low 6 WRV-Low
E26/4WD 27 WRV-Low 6 WRV-Low
SAFARI Y60 94 Hub diameter is large · Can not be installed 12 Hub diameter is large · Can not be installed
Y61 94 Hub diameter is large · Can not be installed 12 Hub diameter is large · Can not be installed
TERRANO D21 78 Hub height is large · Can not be installed 5 WRV-Low
R50 67 WRV-Hi 5 WRV-Low
MISTRAL R20 78 Hub height is large · Can not be installed 6 WRV-Low
DATSUN TRUCK D22/2WD 46 WRV-Mid 6 WRV-Low
D22/4WD 73 WRV-Hi 4 WRV-Low
DELICA SPACE GEAR PD・PE・PF 74 WRV-Hi 9 Hub diameter is large · Can not be installed
TRITON KB9T 28 WRV-Mid 28 WRV-Mid
PAJERO V20・40 72 WRV-Hi 9 Hub diameter is large · Can not be installed
V60・70 28 WRV-Mid 28 WRV-Mid
V80・90 28 WRV-Mid 28 WRV-Mid
PAJERO EVOLUTION V55 26 WRV-Low 26 WRV-Low
CHALLENGER K99 73 WRV-Hi 9 Hub diameter is large · Can not be installed
MU・WIZARD S69 74 WRV-Hi 7 WRV-Low
MU S69 80 Hub height is large · Can not be installed 7 WRV-Low
BIGHORN S69 81 Hub height is large · Can not be installed 6 WRV-Low
S73 74 WRV-Hi 6 WRV-Low
JIMNY(~’04/9) SJ・JA・JB 71 WRV-Hi 0 WRV-Low
JIMNY(’04/10~) JB 73 Hub diameter is large · Can not be installed 0 WRV-Low
JIMNY WIDE JB 71 WRV-Hi 0 WRV-Low
JIMNY SIERRA(~’04/9) JB 71 WRV-Hi 0 WRV-Low
JIMNY SIERRA(’04/10~) JB 73 Hub diameter is large · Can not be installed 0 WRV-Low

Note:
① WRV CAP Series may not fit depends on Hub diameter and contour.
② The above sample fitment list is composed of representative names and may vary depending on actual model year, and grades, options and so on.Use for reference only.
③ WRV CAP may protrude from tire fender, as fitments vary due to vehicle condition, fender clearance, left/right tire balance, and tire size/design.
④ WRV CAP will not work with manual locking hub type because the cap is not open type.
